Rack & Pinion Drive - KRP+ DRP+

Accionamentos piñón cremallera - KRP+ DRP+

APPLICATION DATA

Travelling mode Horizontal Vertical Number of racks per axis 1 : Column configuration 2: Gantry configuration

Balanced driving force 100 % 50-50 % Travel distance [ m ]

Rack and Gear type (helix angle) Helical (19°31’42”) Straight

PROJECT DATA - FOR LINEAR DRIVE APPLICATIONS

66 - 33 %

Type of machinery Milling / Boring Others

Configuration

Moving Column - Fixed table Fixed Column - Mov. table Moving Gantry - Fixed table Fixed gantry - Mov. table

2D / Sheet cutting

OPERATION DATA

Feed force (from cutting) [ N ] Acceleration [ m/s 2 ] Linear speed [ m/min ] Friction coefficient [ - ] Mass to move [ kg ]

MOTOR DATA

Rated torque [ N.m ] Rated speed [ min -1 ] Inertia [ kg.m 2 ]

Peak torque [ N.m ] Max. speed [ min -1 ]

Manufacturer name & complete reference

GEARBOX DATA & CONFIGURATION

Details

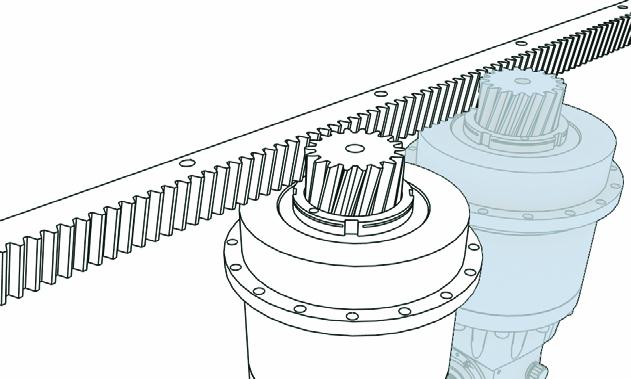

DualDRIVE

Mechanical preload

SingleDRIVE

No preload

TwinDRIVE

Electrical Preload

COMPANY

Address

Phone

Function Name

Fax

E-mail Zip Code

City

Reduction ratio 21 31 46 91 61 7 10 5 (*) (*) (*)

(*) Check the ratio availability on the technical data p 6
