Rack & Pinion Drive - KRP+ DRP+

Accionamentos piñón cremallera - KRP+ DRP+

COMPANY

Address

Phone

Function Name

Fax

E-mail

APPLICATION DATA

Gear teeth helical Module Crown gear pitch diameter Pinion gear to be calculated by the supplier : No

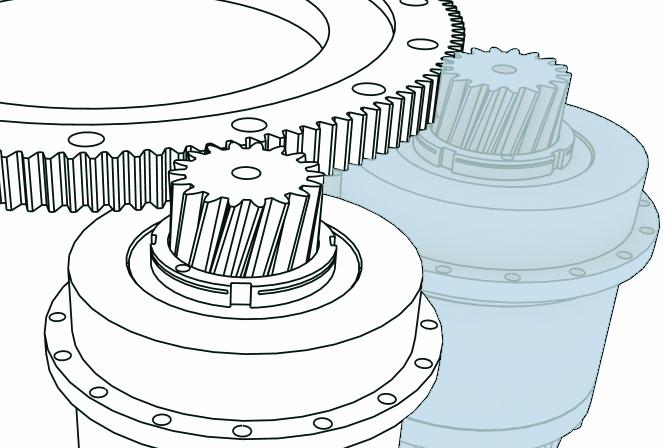

PROJECT DATA - FOR ROTARY DRIVE APPLICATIONS

Type of machinery Milling / Boring Others Drilling

OPERATION DATA

Tangential force (external) [ N ] Acceleration [ m/s 2 ]

Ring gear rotational speed [ rpm ] Friction coefficient [ - ]

Mass to move [ kg ]

MOTOR DATA

Rated torque [ N.m ] Rated speed [ min -1 ] Inertia [ kg.m 2 ]

Peak torque [ N.m ] Max. speed [ min -1 ]

Manufacturer name & complete reference

GEARBOX DATA & CONFIGURATION

Reduction ratio 21 31 46 91 61

Details

Straigth

z : N# of teeth

Yes

Pitch diam.

Driven table inertia [ kg.m² ]

Continuous process

Dwell between two cycles t4 [ s ]

Cycles per hour [ - ]

7 10 5 (*) (*) (*)

(*) Check the ratio availability on the technical data p 6

Zip Code

City

Accel. duration t1 [ s ]

Continuous duty duration t2 [ s ] Braking duration t3 [ s ] Intermittent

Rotary axis Vertical horizontal Comments

DualDRIVE

Mechanical preload

SingleDRIVE

No preload

TwinDRIVE

Electrical Preload
