SR SERIES - Differentials and Reducers SERIE SR - Différentiels et Reducteurs
CONTENTS
SOMMAIRE DETAILLE
SR SERIES - Differentials and Reducers
The universal design

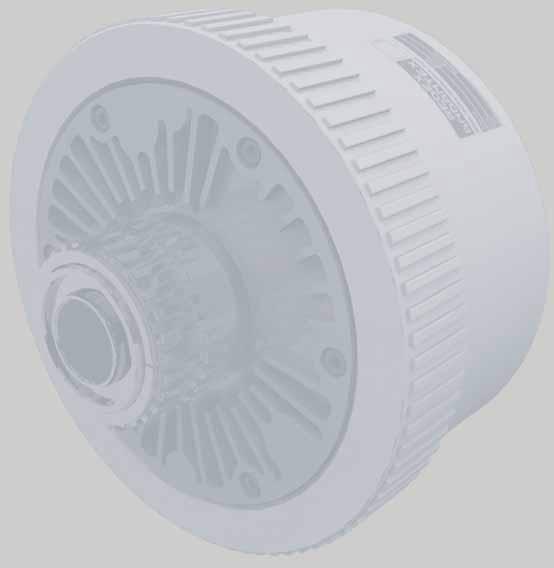

The SR Series differential gearbox is based on a compound epicyclic gearing system.
A high torque capacity in a very compact space is achie-ved by a patented thermo-plastic injection process which allows an increase in the quantity of planet gears. The combination of three motion elements and a wide range of reduction ratios provides solutions to many elec-tro-mechanical drive problems.
SERIE SR - Différentiel et Réducteur
La gamme universelle
La gamme des réducteurs / différentiels SR est conçue autour d'un train d'engrenages épicycloïdal, et permet d'offrir un couple très élevé et une grande gamme de rap-ports de réduction dans un encombrement limité. Une conception exclusive, qui s'appuie sur une technolo-gie d'assemblage par liaison thermoplastique (brevetée), autorise l'accroissement du nombre de planétaires, sans qu'il soit nécessaire d'augmenter la taille des appareils. La combinaison des vitesses des trois éléments principaux donne une solution mécanique simple à de nombreux
mécaniques.
OVERVIEW DESIGN PRINCIPLES SELECTION & NO. TE ORDERING CODE TORQUE TABLE POWER TABLE
RADIAL LOADS 92 BASIC DIMENSIONS 93 SPECIFIC DIMENSIONS 94 ACCESSORIES 97 RECOMMENDATIONS 100
85 86 DENTS 87
88 89 90 CHARGES RADIALES 92 ENCOMBREMENT VERSION DE BASE 93 DIMENSIONS SPECIFIQUES 94 ACCESSOIRES 97 RECOMMANDATIONS 100
