Right-Angle Gearboxes

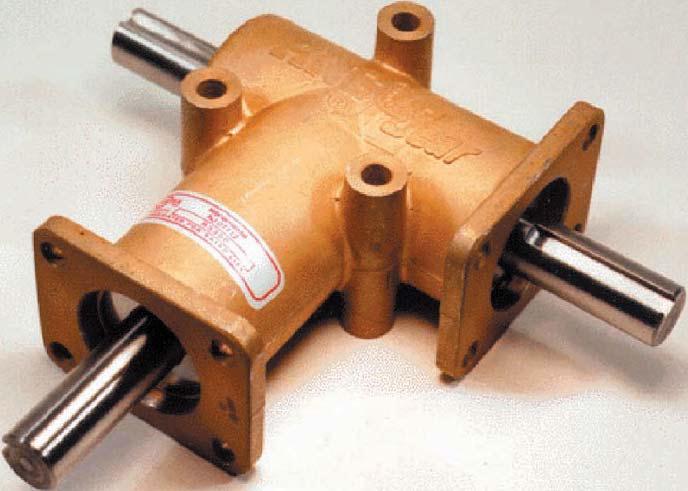

A. AnglGear Right-Angle Drives

Available from stock in both Inch and Metric series, all ANGLgear units employ completely enclosed and sealed ball bearings and are lubricated for life. Ratings from 1/3 to 10 HP, 1:1 and 2:1 ratios. Standard models available with one or two output shafts. Specials and modified units available upon request. Contact your local distributor or Andantex for engineering assistance.

B. Z-Series Spiral-Bevel Gearboxes

The new Z-Series precision spiral-bevel gearboxes feature Klingelnberg spiral-bevel gears made of case-hardened alloy steel. These versatile units can be used as reducers or increasers with ratios from 0.5:1 to 6:1. %FFICIENCY OF THE UNITS IS FROM TO

&EATURES INCLUDE LOW BACKLASH THREE ARC MINUTES high input speeds (3,000 rpm) and horsepower ratings from 2 HP to 540 HP. The series consists of six model types, including forward, neutral and reverse.

These gearboxes can now be offered with laby-rinth seals instead of radial shaft seals. Speeds up to 3,000 rpm can be obtained

without the need for pumps, heat exchangers and reservoirs normally required.

C. R-Series Spiral-Bevel Gearboxes

These rugged units take over for the Z-Series in high power requirement applications, with ratings from 600 HP to 1,700 HP. They are available in three sizes with ratios from 1:1 to 6:1.

The R-Series features carburized alloy steel spiral-bevel gears that are lapped and installed in matched sets to ensure low backlash and quiet operation. Backlash of ten arc-minutes is standard, with the option for <6 arc-minutes available on REQUEST 4HESE UNITS ARE TO EFFICIENT

D. AnglCube Right-Angle Drives

These spiral-bevel gearboxes offer a unique universal mounting arrangement, allowing for extremely wide design flexibility. All AnglCube units feature case-hardened spiral-bevel gears in an

aluminum alloy housing. This reduces the OVERALL WEIGHT OF THE UNITS TO OF THE : 3ERIES

Ratios 1:1 and 2:1 are available with power ratings from 7.5 to 70 HP. Units are splash lubricated with synthetic oil and sealed with Viton ® seals.
