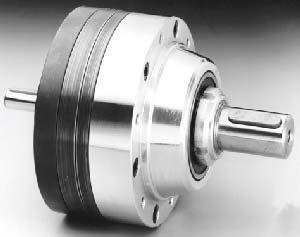

A. 2SR “Correctable Backlash” Servo-Reducers

In a compact package these Servo-Reducers feature <1 arc-minute backlash, low input inertia, high torsional stiffness, precise repeatability, and reduction ratios from 12:1 to 100:1. A unique wear compensation design enables “in-the-field” backlash correction, so that minimum backlash is maintained for the life of the unit. Available in five sizes, with input speeds up to RPM WITH EFFICIENCIES GREATER THAN /UTPUT TORQUE CAPACITIES TO ,B &T

B. Cycloidal Differentials

Differential series 2SRD and DLS combine the reliability of mechanics with the precision of servo electronics. These gearboxes offer minimum back-lash (<1 arc-minute), low inertia, high torsional stiffness and precise repeatability in order to provide dynamic motion profiles including high-speed and rapid acceleration rates.

The 2SRD is a shaft mounted unit and the DLS comes complete in a gearbox housing. Each design comes in three standard sizes with ratios from 12:1 to 100:1 and torque capacities to 1,180 lb. ft..

C. Heynau Variable-Speed Drives

The Heynau H-Drive is one of the most well known mechanical variable speed drives. The simple construction of this all-steel drive meets the highest requirements for quiet operation, precise speed holding, high efficiency and durability. The drives utilize a set of cones which transmit power via an encapsulating steel ring. By adjusting these cones in relation to the steel ring, a speed ADJUSTMENT RANGE OF OR CAN BE ACHIEVED This speed range can be realized while the machine is at rest or in motion. These drives can be arranged with input and output reducers and motors to achieve hundreds of speed and power ratings.

A.

B.

C.

After Market Products
