Merobel Products

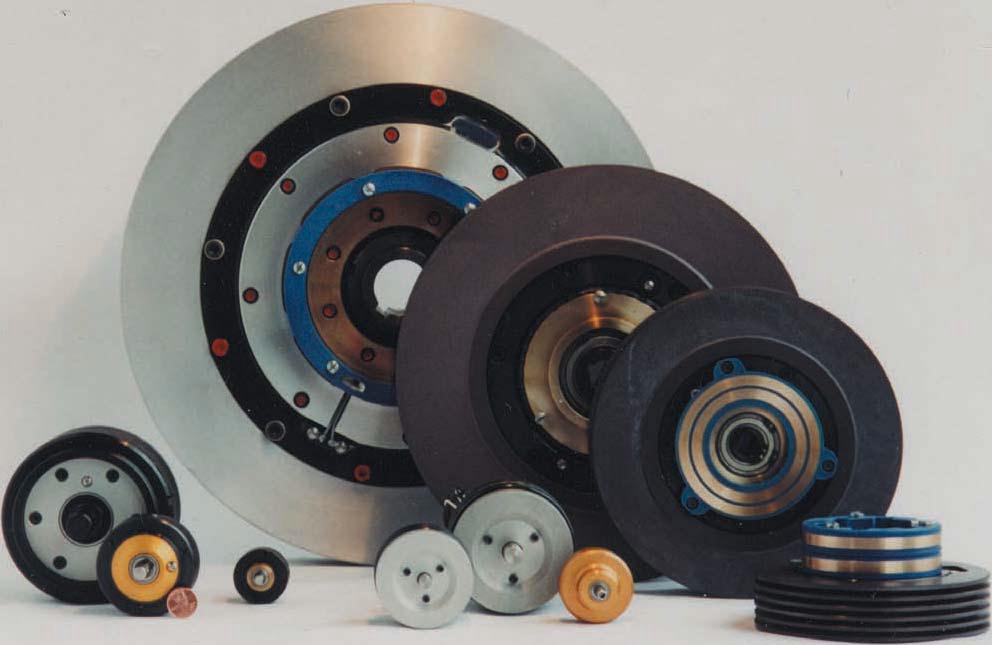

A. Electromagnetic Particle Brakes & Clutches

These brakes and clutches provide a torque range from 0.005 to 1,000 lb. ft., proportional to the electric current, independent of the slipping speed, with low residual torque and power consumption. They are easy to integrate into any type of system, providing linear, smooth, clean/dust free, silent operation with low wear, long life and reduced maintenance.

All Merobel brakes and clutches can be adapted with a cooling fin (radiator), blower kit or water cooling to meet the thermal dissipation requirement..

B. Torque Limiters

The torque adjustment is accomplished by the displacement of an iron ring, which modulates the flux of a permanent magnet. These units are easily integrated into any type of system,

achieving linear, smooth, silent operation with low wear and long life-reduced maintenance. They are lubricated for life and are designed for horizontal and vertical shaft orientation.

The New LC CS/CSM Series for Capping Applications features low inertia and a wide range of torque adjustment with torque capacity from 0.77 to 54 Lb.In.

C. Electronic Boards & Accessories

Merobel modular electronic boards can be used alone or combined depending on the function required for the application. The available boards are: Powerblock, current regulated power supply, PLP05, analog PID with power supply, and amplifier boards for transducers.

A complete range of force transducers, torque transducers, ultrasonic, and laser sensors are available to sense the products being controlled.
